Single Family &
Multiplexes
Our single-family home product line includes several value-engineered base floor plans, and multiple bolt-on options. This carefully designed product selection provides for a high level of flexibility, while still allowing for standardization in the manufacturing process. The result is higher quality and lower cost product that is adaptable enough to work with any site plan.
All of our homes are offered with 16’ or 18’ wide boxes, in two exterior styles: Farmhouse and Mountain Modern
Our smallest two single-family homes, the Antero and the Shavano, can also be combined in an attached townhome product that works equally well as a duplex, triplex, or 5-plex.
Our bolt-on options add substantial flexibility to our base model units, while keeping things as standardized and cost-efficient as possible. Add additional living space or bedrooms and bathrooms.
Two-Story Layouts
-
![]()
ANTERO
The smallest standalone single family floor plan that Fading West offers, the Antero is an excellent value for the first time homebuyer, and also makes for a very efficient rental unit.
Bedrooms: 2
Bathrooms: 1.5
SF: 1,024 - 1,152 -
![]()
SHAVANO
Enormous value in a medium sized footprint. The Shavano is one of the most popular models that Fading West sells, for good reason.
Bedrooms: 3
Bathrooms: 2
SF: 1,216 - 1,368 -
![]()
GRAYS
With plenty of space for the growing family, the Grays offers the same level of value that Fading West is known for in a slightly larger footprint. Includes a downstairs bedroom.
Bedrooms: 4 / 3 with Loft
Bathrooms: 2.5
SF: 1,600 - 1,800 -
![]()

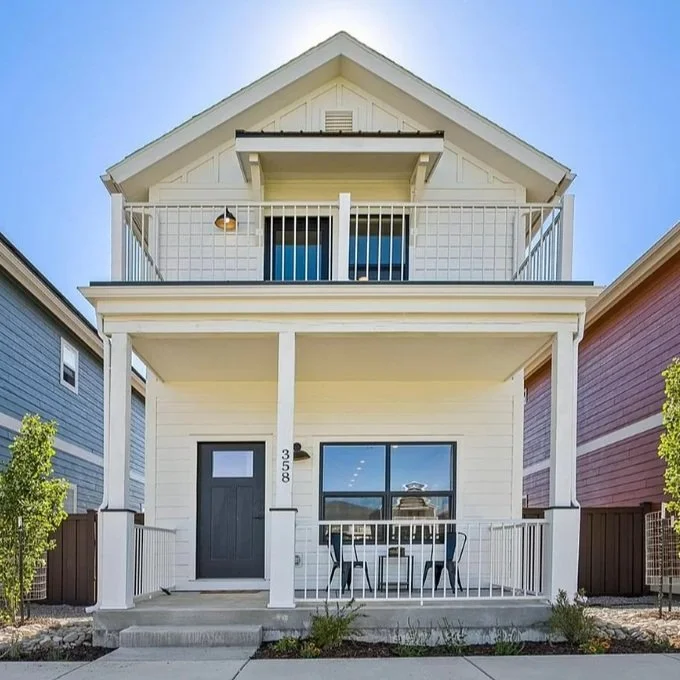

TORREYS
Like the Grays model, Torreys offers value at a slightly larger footprint. In Torreys, all bedrooms are upstairs.
Bedrooms: 3
Bathrooms: 2.5
SF: 1,600 - 1,800
Ranch Layouts
-
![]()
DEMOCRAT
Our 16’ x 38’ option Democrat is our smaller base ranch model. This unit can be combined with one of our bolt-on options for a larger single story footprint.
Bedrooms: 1
Bathrooms: 1
SF: 608 -
![]()
LINCOLN
Our 16’ x 50’ option base ranch model offers an expanded layout over the Democrat model. This unit can be combined with one of our bolt-on options for a larger single story footprint.
Bedrooms: 1
Bathrooms: 1.5
SF: 800 -
![]()

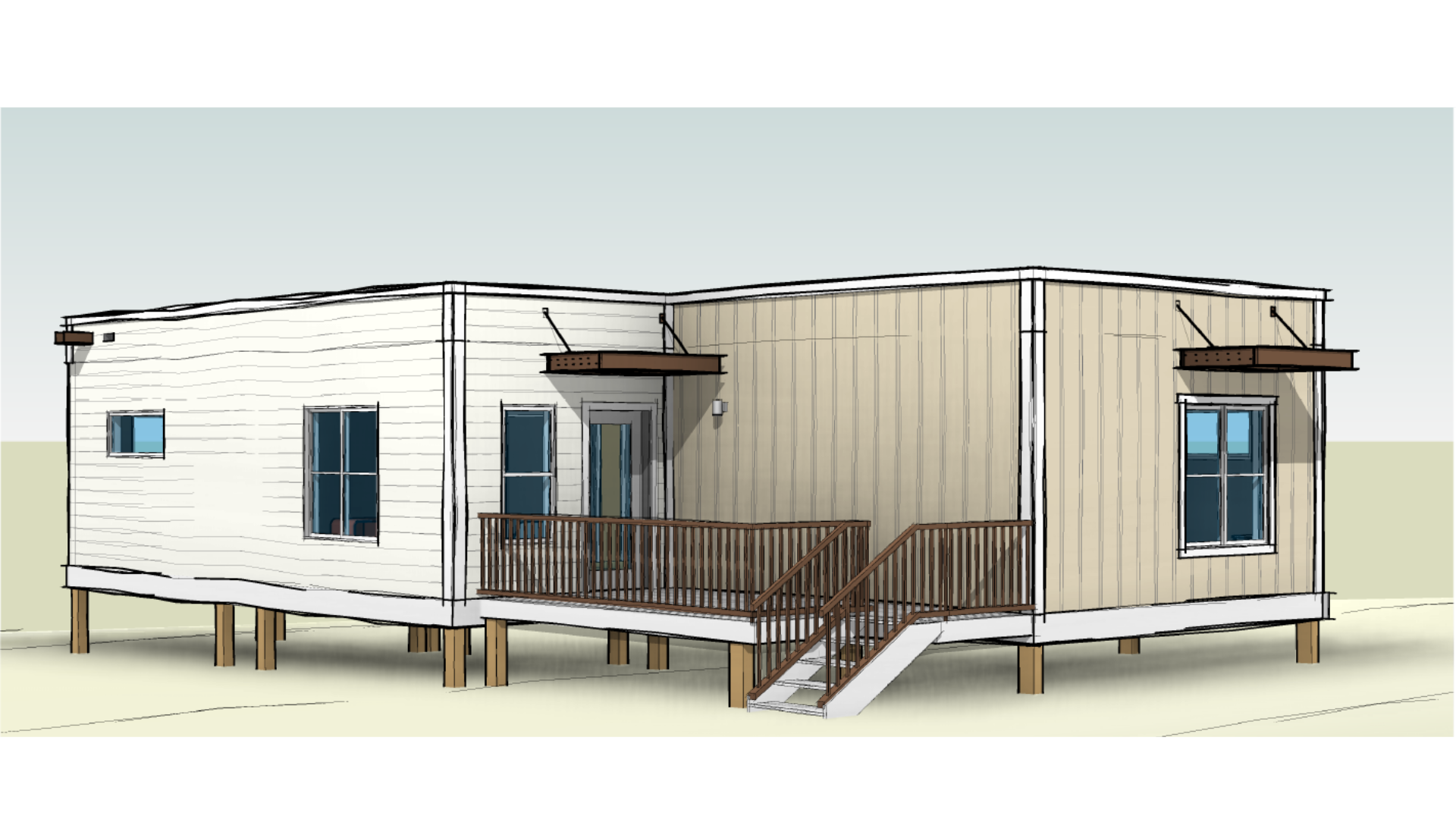

HALEAKALĀ RANCH
The Haleakalā Ranch model was originally developed for disaster relief housing in Maui, HI. It has since become a staple in our product line, as it can be combined with a bolt-on to create a total of three bedrooms and can easily be adjusted to meet ADA requirements.
Bedrooms: 2 / 3
Bathrooms: 2
SF: 736 / 1016 -
![]()

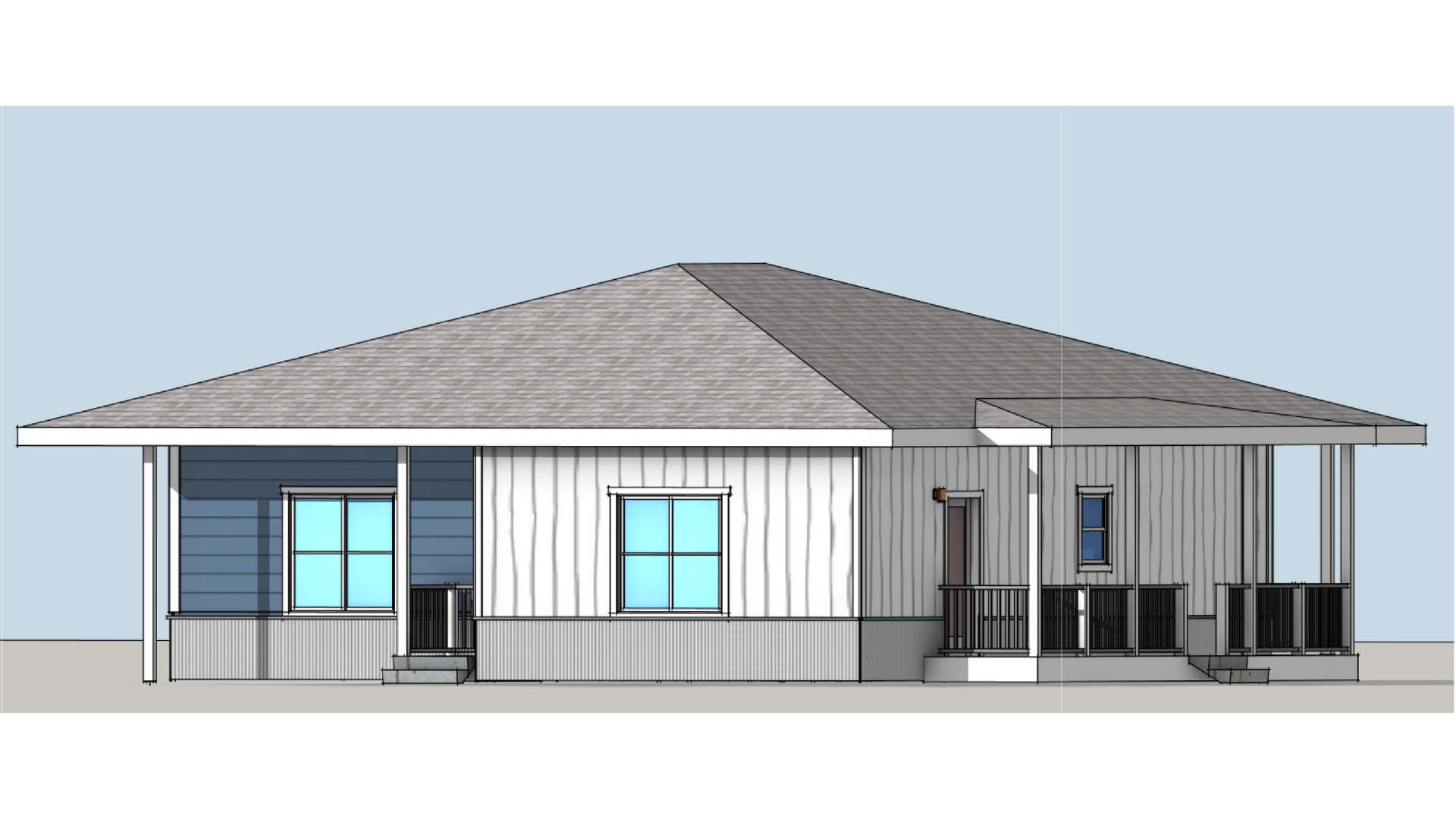

EAGLE RANCH
The Eagle model boasts a primary suite off the kitchen and nests the second and third bedrooms off the family room.
Bedrooms: 3 Bathrooms: 2 SF: 1375
-
![]()

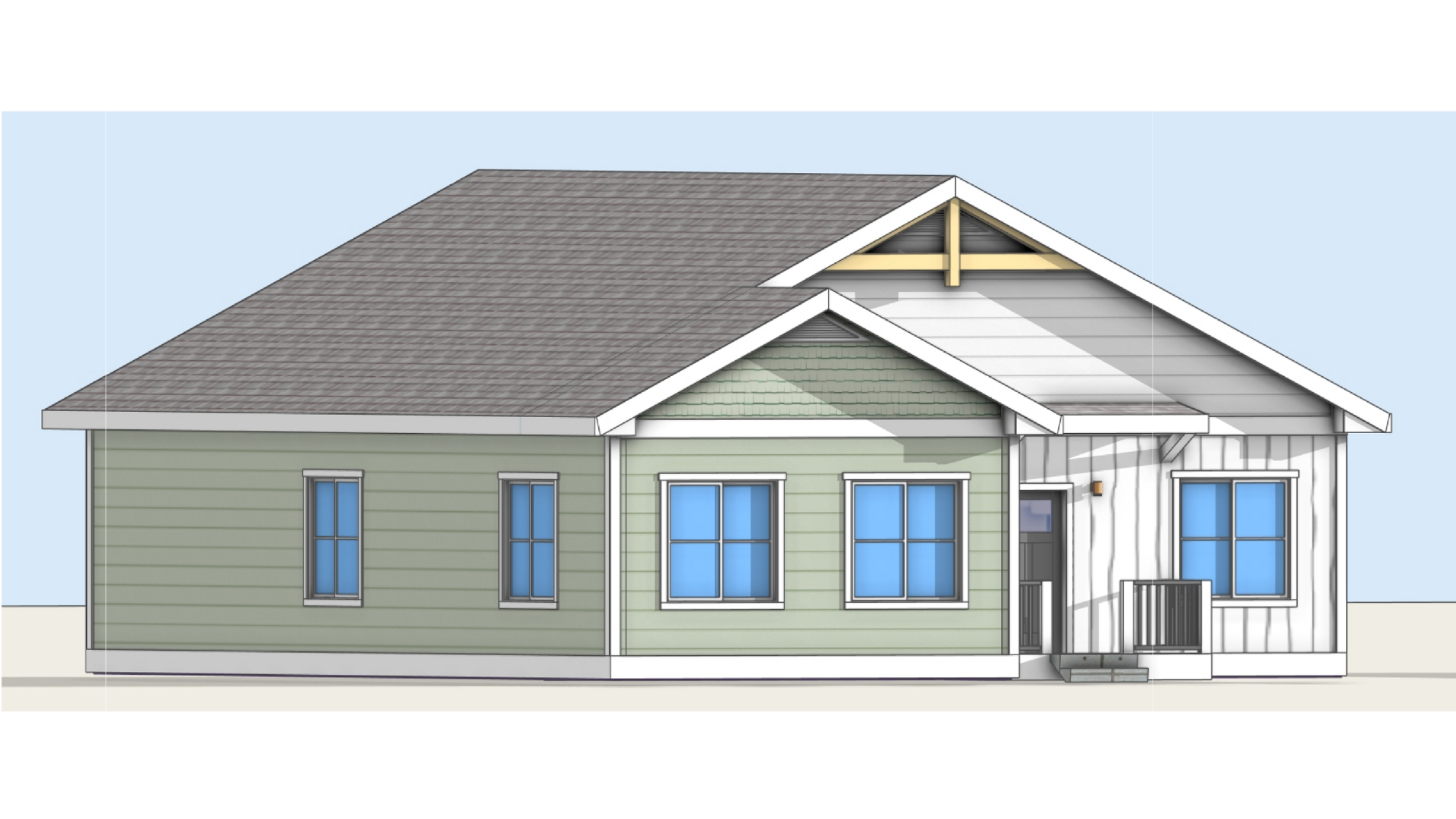

CLOUD RANCH
The Cloud model is the largest of our ranch options and offers a separate primary suite, additional family room, and a separate laundry area with ample close speace.
Bedrooms: 3 Bathrooms: 2 SF: 1800
-
![]()
BIGHORN RANCH
The Bighorn offers a spacious mudroom off the entry and peninsula kitchen, with the primary suite on opposite ends of the second and third bedrooms.
Bedrooms: 3 Bathrooms: 2.5 SF: 1625
-
![]()

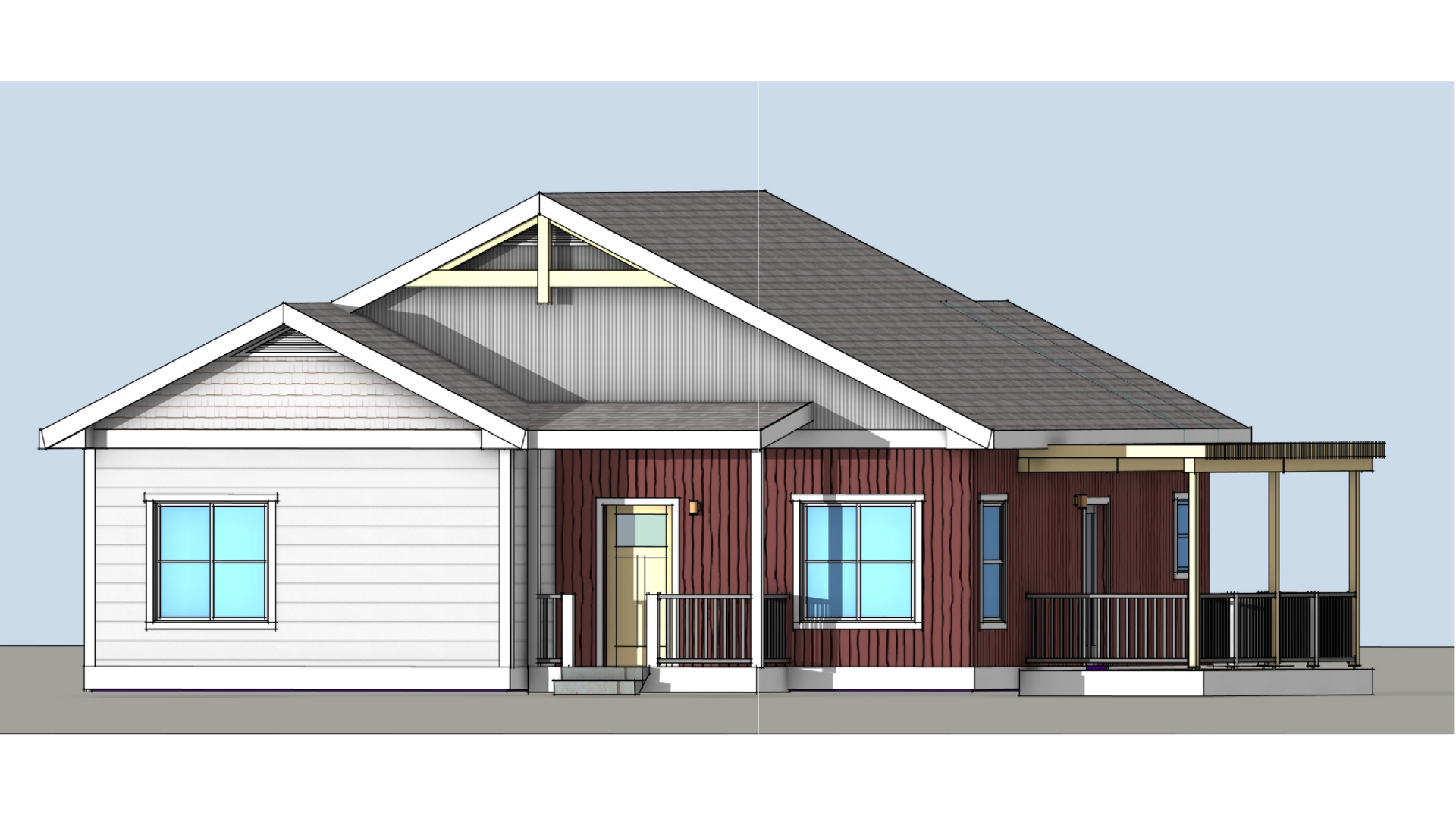

ELK RANCH
The Elk layout has two bedrooms and a shared bathroom which makes for a great starter home.
Bedrooms: 2 Bathrooms: 1.5 SF: 1150
Bolt-On & ADU Layouts
Multiplex Configurations
-
![]()
TRI-PLEX
-
![]()
5-PLEX
